TerminalNeva v.1.02

The program simulates the production of bulk terminals Vesservice Ltd

You can download the following files:

    TerminalNeva v.1.02(eng)   Download Size: 1475 kb
        Rev.: 18.01.2012

    Guide Program (rus)   Download Size: 49 kb Changed:04.07.2010

§1 Description:

    The program is intended for software developers (eg 1C-Enterprise) using Nevskie scales. It allows developers to write programs without weights, simulating the weight terminals Neva weights. The program allows you to get on any COM port on your PC signals similar to those issued weighted terminals. You may not connecting weights, install and remove cargo from the weights, as well as submit server signals such as: exceeding the maximum weight, the scale at zero, weight hold, tare.

§2 Description of Terminal Emulator Neva weights TerminalNeva v.1.02

    The program is designed to fully simulate the operation of weighted terminals NVT-1 and NVT-3 and NVT-5 produced by Vesservice Ltd. You can use it to debug the program will work for working with weights. The program can be installed on one or on different computers. It is only necessary to connect the selected COM ports null-modem cable.



Fig.1. Scheme of a null modem cable
Null-modem cable

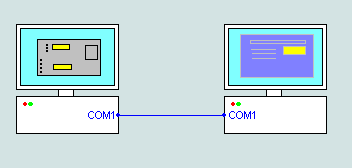

Fig.2. Terminal emulator weight and the weight of the program on different computers
Emulator weights with two PCs

Fig.3 terminal emulator weight and the weight of the program on one computer.
Emulator weights on a single PC

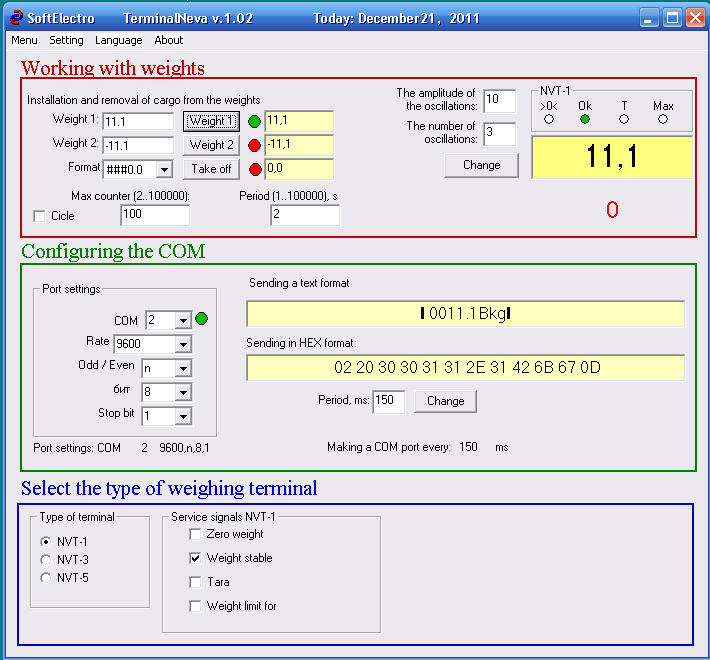

Fig.4. Windows Terminal Emulator TerminalNeva v.1.02
Terminal Emulator Neva weights TerminalNeva v.1.02



<
